Timber Frame Garage Apartment Plan

posted in: Plans | 0

This garage apartment plan offers you a space with total flexibility. Are you looking for a small home with a workspace? A guest apartment with parking below? The possibilities are endless. The lower level of this timber frame is 20'x36' of enclosed space with a 10'x36' covered porch. Barn doors open wide for easy accessibility and air flow. Upstairs is 720 square feet of living space, laid out as a one bedroom, one bathroom home. It features an open concept living-dining-kitchen great room. The cathedral ceiling makes this compact space live much larger. The second level deck adds additional outdoor living space.

Garage apartment timber frame

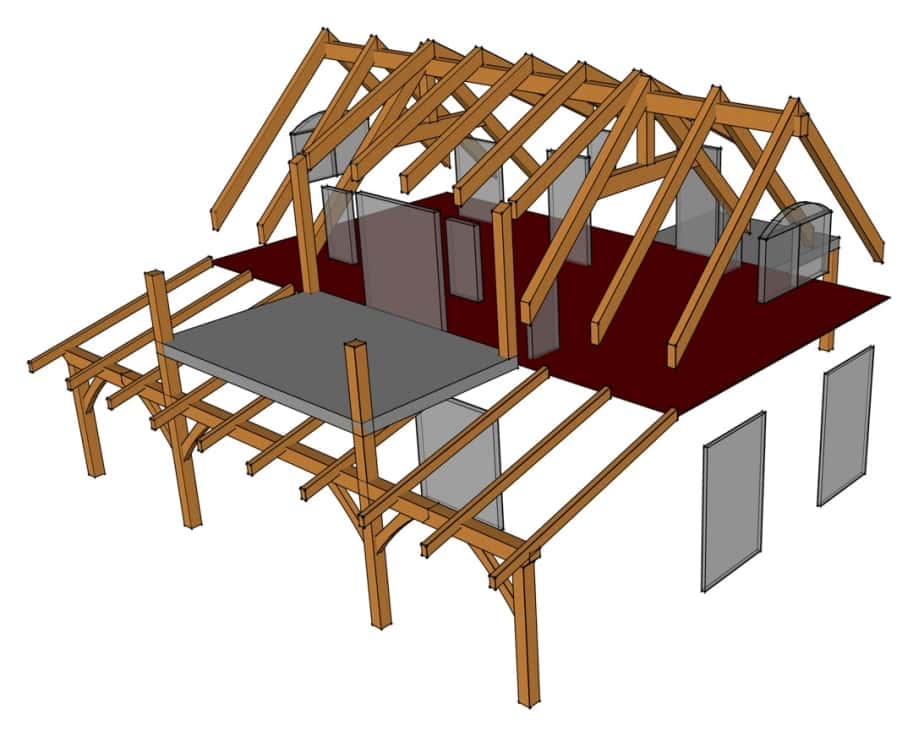

Timber frame diagram
Garage apartment plan

Upper Level Floor Plan

Garage apartment floor plan

The 8'x8' king posts, 8'x10' principal rafters, and 8'x12' main ridge timbers creates a solid substantial frame. While using a predesigned timber frame plan can save you money on design costs, this garage apartment plan can easily be modified to suit your needs.

Wood has positive impacts on your health and well being, providing another bonus of choosing timber frame for your structure!
