16×24 Heavy Timber Pavilion Plans

posted in: Plans | 0

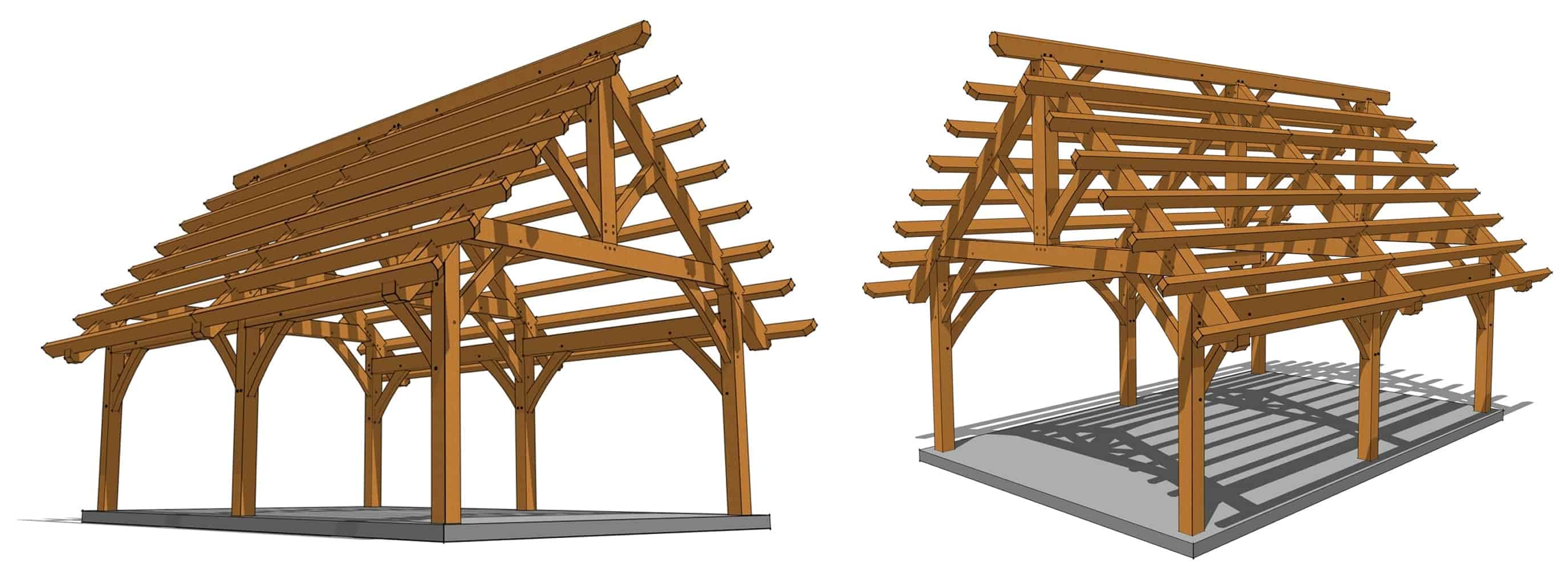

Timber frame pavilion plan


This generously sized 16' x 24' pavilion features beefy 8 x 8 posts with 8 x 10 king posts, plates and rafters. With 384 square feet, the frame could be enclosed to create a deluxe workshop or guest home.

Pavilions provide shelter and shade, while maintaining an outdoor experience. Whether you want to throw big parties, host weddings,  do yoga, or just relax, this timber framed pavilion will become your go-to spot.


16x24 Pavilion Plans

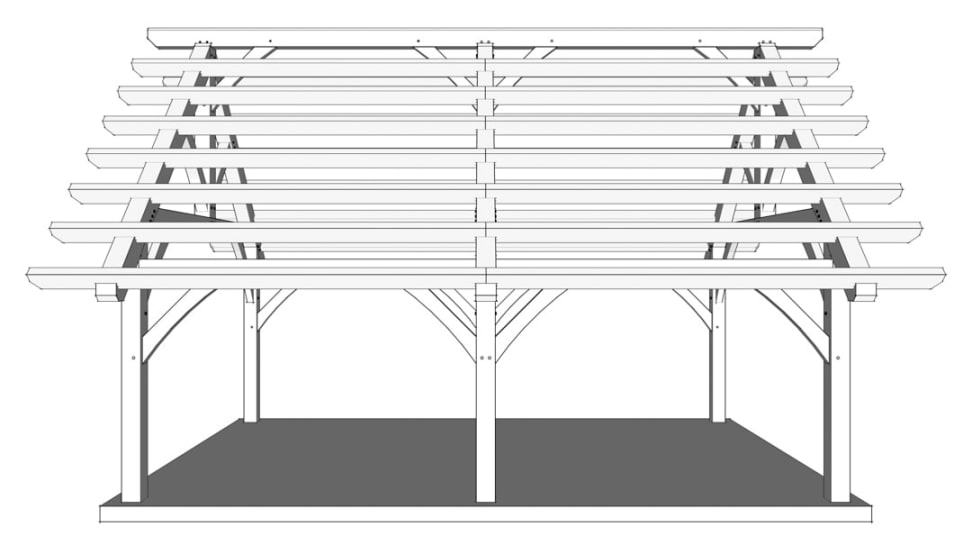

16x24 pavilion plan

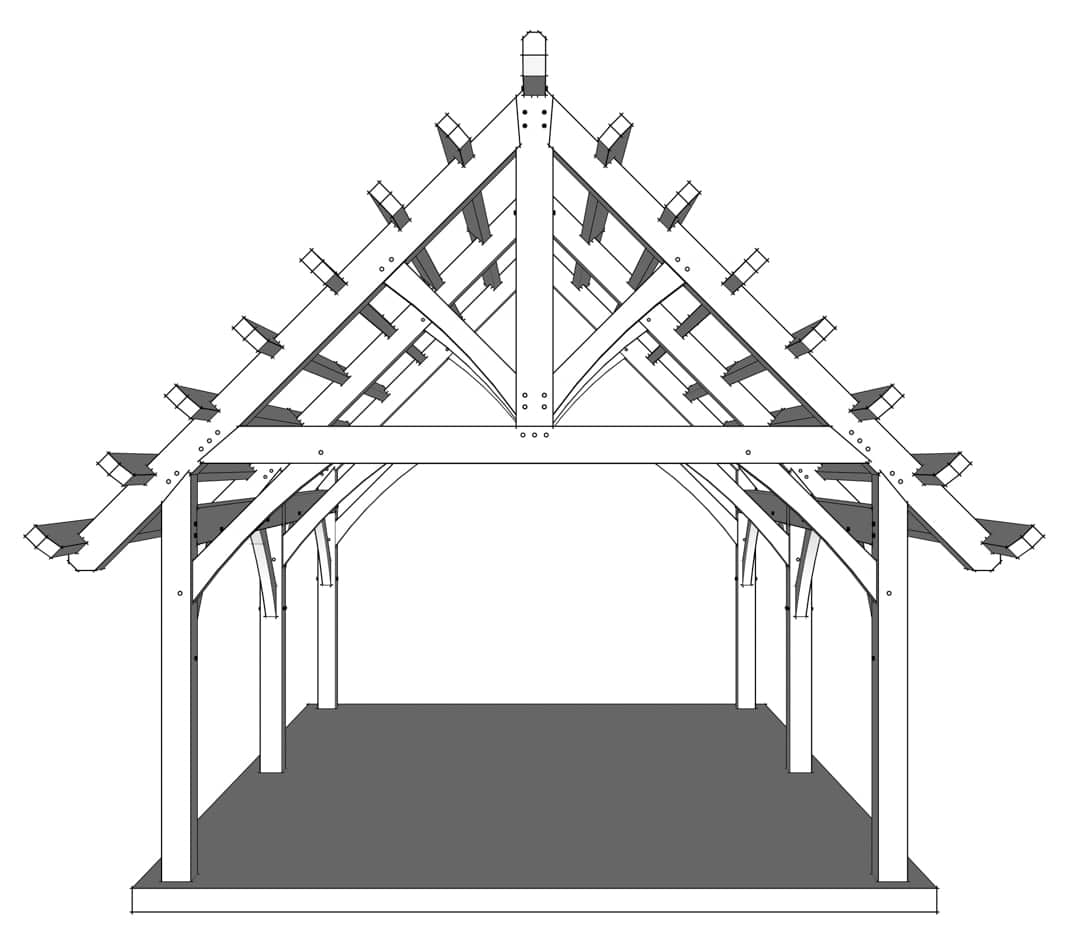

16x24 Heavy Timber Pavilion Plan (6841) Mono - 10-min

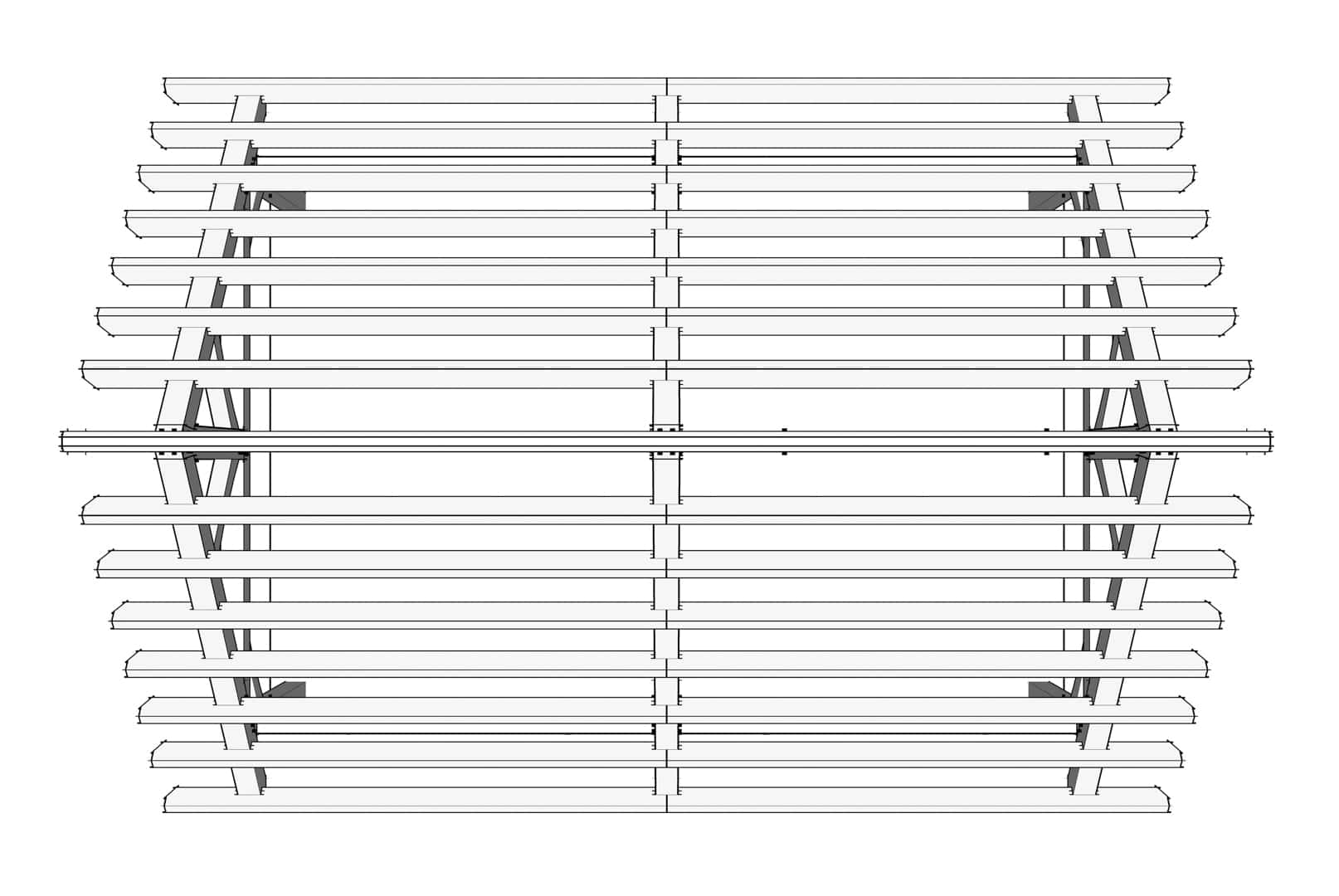

16x24 Pavilion Roof Plan
Pavilion timber plan
